LCD Full HD Industrial Computer Monitor Touch Screens Media Player

Meet Industrial Monitor Manufacturer

CY Digital Signage is a industrial monitor manufacturer over 12 years, committed to China’s high-end displays manufacturing, focusing on OEM ODM capabilities, professional to create your brand.

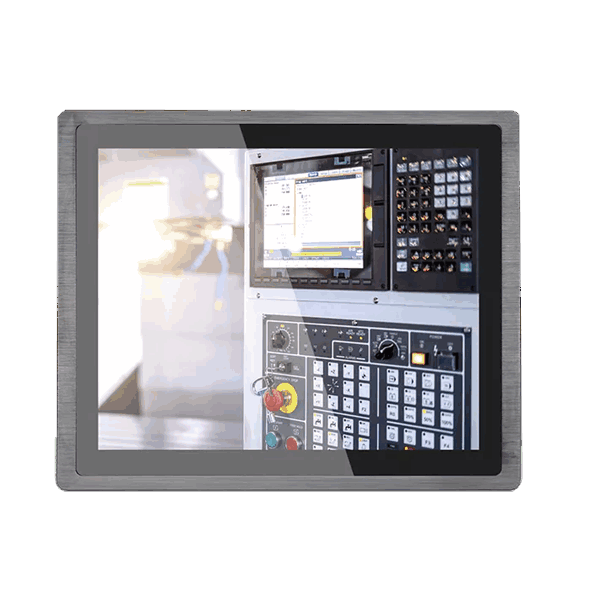

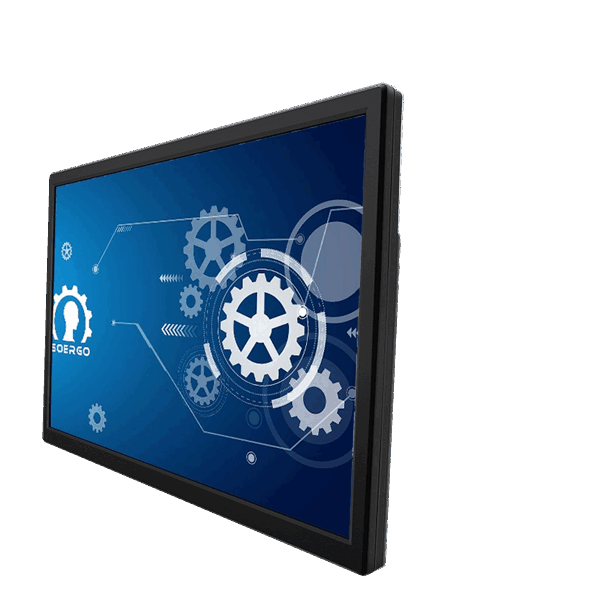

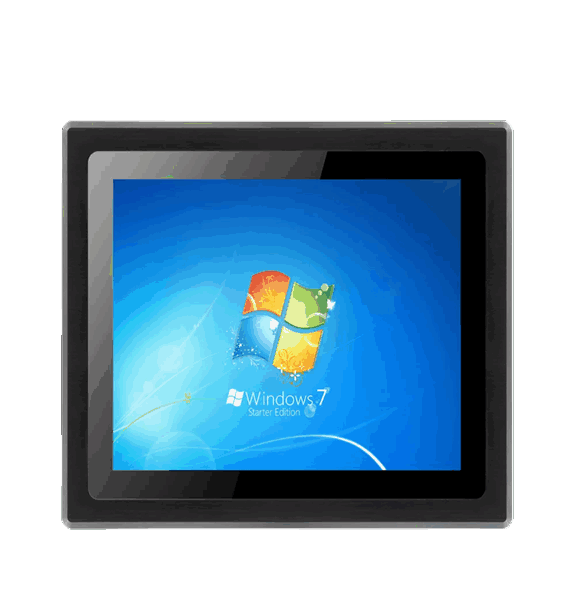

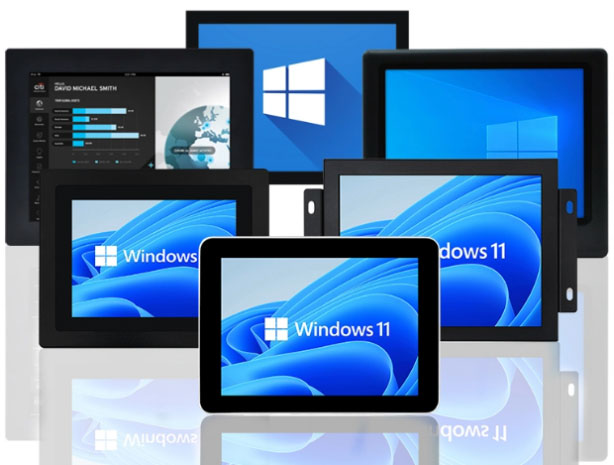

CY Digital Signage 15.6" Full HD LCD touchscreen industrial computer monitor is ideal for the toughest environments, such as machine monitoring, control and public safety. With an impressive 1920 x 1080 resolution, 178° vertical and horizontal viewing angles, this display also features a 6 ms response time that allows you to enjoy smooth images with no ghosting or smearing when running high-performance applications, as well as a light sensor so it can be automatically adjusted to suit your environment. Includes all standard inputs along with built-in USB type C, HDMI and VGA ports.

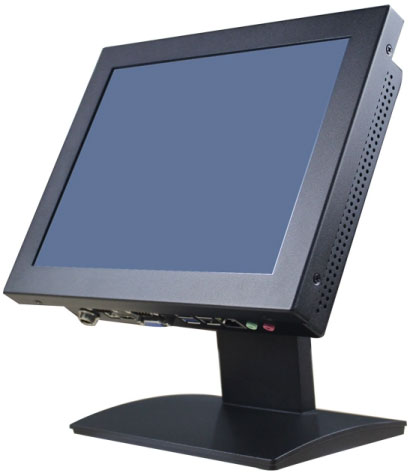

Our touchscreen LCD monitors are a perfect alternative to traditional POS displays and other counter top solutions. Our LCD Full HD Industrial Computer Monitor Touch Screens can make your operation stand out more and make your business much more efficient at the same time. With a choice of either touch screen or resistive, you can choose the technology that best suits your needs and budget.

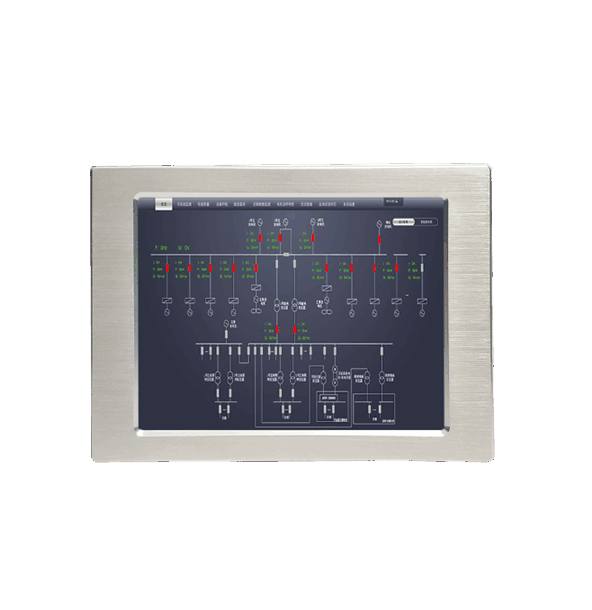

INDUSTRIAL CONTROL LCD SCREEN

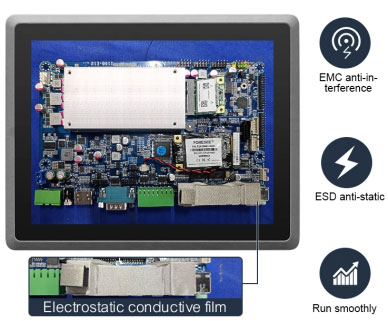

Industrial quality, more stable operation. Waterproof and dust-proof. 7/24 hours working and working Temperature for operate at -10 to 60℃. Support OSD menu brightness and etc. LCD full HD industrial computer monitor touch screens. Our industrial touch screens are designed for harsh environments, with excellent performance and long-term stability.

APPLICABLE TO A VARIETY OF MODELS

High stability, stable performance. Suitable for PS3/PS4/XBOX/MAC, MIN and other game consoles Raspberry Pi, dynamic five-wipe, automatic identification of resolution and signal. This is a new product with the latest technology, which can be used in industrial production and office environments to replace traditional monitors, providing users with a better experience. This product is not only cost-effective, but also has a strong sense of artistry so that customers will love it.

HD PANEL WITH LED BACKLIGHT

Options for different resolutions and different comparison options. With industrial class A LED. Regular brightness: 300 CD/m2 (OEM 450/800/1000nits). Wide viewing angle: 160/160 (OEM viewing monitor). This LCD monitor is a new generation with many features and advantages, such as high brightness and contrast, wide viewing angle, high display purity and excellent color reproduction.

Screen Customization

Interface Customization

Specification

Industrial PC		10inch	12inch	15inch	17inch	19inch

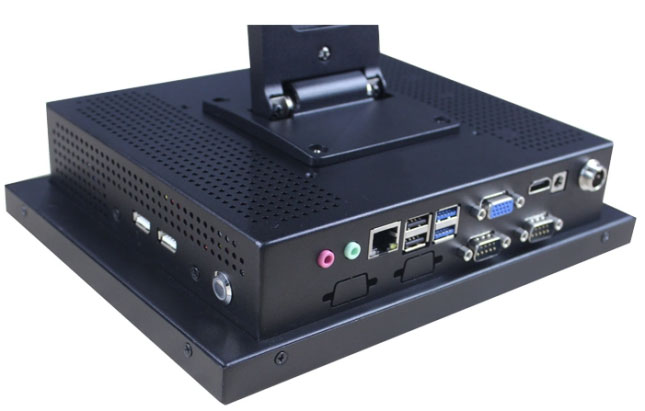

Motherboard	Configuration	Intel®4th generation Pentium 3558U, DDR3-4G, SSD-64G
Interface	WiFi,3/4G module	802.11b/g/n(optional),Support 3g/4g (optional)
	HDMI	1*HDMI output
	USB	4*USB 3.0
	Network	2*RJ45 with 1000 Base-T
	Com	com(RS485)*2
	Power supply	1*DC lock phoenix terminal, Support 9-36V
	Audio output	1*3.5mm audio
	Other	8*GPIO (optional)
Display	Screen type	10.4 LED	12.1 LED	15 LED	17 LED	19 LED
	Resolution	1024*768	1024*768	1024*768	1280*1024	1280*1024
	Size(mm)	210.4(W)×157.8(H)	245.7(w)×184.3(H)	304.1(W)×228.1(H)	376.3(W)×301.1(H)	376.3(W)×301.1(H)
	Contrast ratio	500:01:00	500:01:00	700:01:00	900:01:00	900:01:00
	Brightness	200cd/m2	200cd/m2	250cd/m2	250cd/m2	250cd/m2
	Screen ratio	4:03	4:03	4:03	5:04	5:04
Structure	Front and back cover	Aluminum
	Craft	Glass frame paste, aluminum die casting
	Color	Black & Grey
	Heat Dissipation	Fan-less aluminum fin heat dissipation
	Panel indicator light	Power state, hard disk state
	Whole size	281*228*56.8mm	315*254*56.8mm	304*2941*55.3mm	404*341*56.3mm	445*3756*59.3mm
Touch Screen	Type	Projected capacitive touch screen
	Touch point	10 point touch
	Physical resolution	4096x4096
	Response time	<6ms
	Accuracy	<2.5mm
	Transparency	≥90%
	Protection	The surface is coated with 1:1 PVC protective film
Others	Working environment	-20ºC~ 70ºC; Humidity: 10%~ 90%
	Storage environment	Temperature: -40ºC~80ºC; Humidity: 10%~90%
	Installation ways	Embedded, VESA100*100mm
	Power consumption	24W	25W	33W	34W	37W
Accessories	Manual	User Manual, certificate of qualification, warranty card
	Bracket	Wall mounted bracket, embedded bracket, desktop bracket (optional)
	Adapter	Power adapter

Where To Use

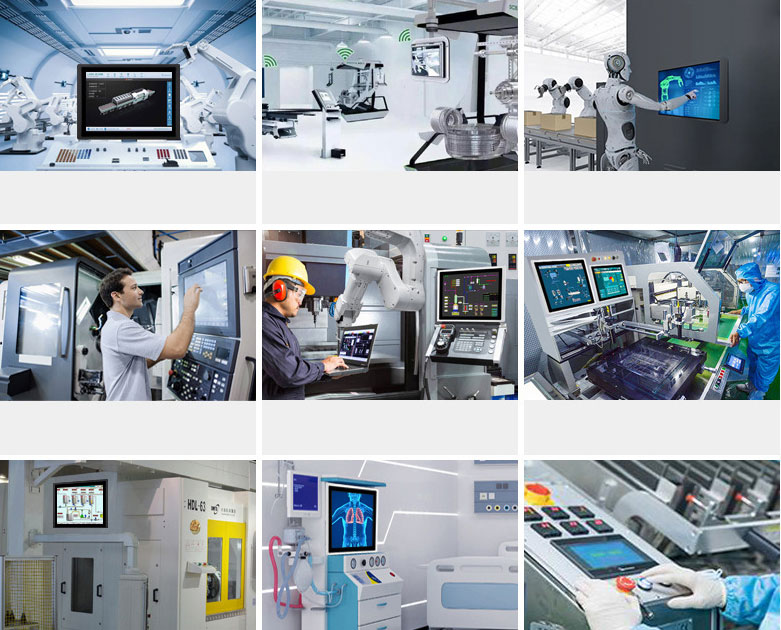

Our IPS Industrial Computer All in One Monitor can use anywhere, such as: CNC machine tools, office, factory, automated industry, medical instrument, self-service terminal, security monitoring, machine tool control, hospital, automatic ticket machine, inspection equipment, bank, digital monitoring, amusement, commercial space and etc.

10 Tests Before Leaving The Factory

A. Packaged with vacuum bag;

B. Pearl carton dust bag packaging;

C. 15mm thickness pearl cotton protection;

D. 5 layers corrugated carton;

E. Honeycomb cardboard box for device up to 27inch;

F. Automatic machine sealing packing belt protection;

G. Packing method can be negotiated: Fumigation-free wooden case packaging or Flight case packaging.
