Big Size 50'' To 110'' LG BOE Samsung AUO LCD Screen Modules
Specializes In R&D And Production Of TFT LCD OLED Display. Customization Accepted. Displays for Industrial Control, Medical Equipment, Retails Brand Display, GPS Navigator, etc. Contact For More! OEM & ODM & SKD Services. Display Solution Provider.
Product Details
LCD ORIGINAL SCREEN
LG & BOE & SAMSUNG & AUO
Meet LCD Commercial Displays Manufacturer
CY Digital Signage is a original screen displays manufacturer over 12 years, committed to China’s high-end displays manufacturing, focusing on OEM ODM capabilities, professional to create your brand.
BOE Original Brand Panel
BOE HR215WU1-120 is a 21.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, Reverse I/F, Matte , ES8.0.
| Brand | BOE |
| Diagonal Size | 21.5 inch |
| Model | HR215WU1-120 |
| Pixel Format | 1920(RGB)×1080 [FHD] 102PPI |
| Type | a-Si TFT-LCD, LCM |
| Configuration | RGB Vertical Stripe |
| Active Area | 476.64(H)×268.11(V) mm |
| Bezel Area | 479.8(H)×271.3(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [17S4P] , 30K hours , W/O Driver |
| Weight | 1.79Kgs (Typ.) |
| Frame Rate | 60Hz |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
AUO Original Brand Panel
AUO P550HVN03.2 is a 55" diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: sRGB, Landscape / Portrait, Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, 8/10 bit, Matte , Bezel (26mm Active to Active).
| Brand | AUO |
| Diagonal Size | 55 inch |
| Model | P550HVN03.2 |
| Pixel Format | 1920(RGB)×1080 (FHD) 40PPI |
| Type | LCM , a-Si TFT-LCD |
| Configuration | RGB Vertical Stripe |
| Active Area | 1209.6 × 680.4 (H×V) |
| Bezel Area | 1216.0 × 686.8 (H×V) |
| Treatment | Antiglare (Haze 11%) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 6.5 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Support Color | 16.7M/1.07B 72% NTSC |
| Light Source | WLED , 60K hours , With LED Driver |
| Weight | 15.0Kgs (Typ.) |
| Frame Rate | 60Hz |
| Signal Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LG Original Brand Panel
LG LC860EQN-FJA1 is a 86 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 8/10 bit, Matte.
| Brand | LG |
| Diagonal Size | 86 inch |
| Model | LC860EQN-FJA1 |
| Pixel Format | 3840(RGB)×2160 [UHD] 51PPI |
| Type | a-Si TFT-LCD, LCM |
| Configuration | RGB Vertical Stripe |
| Active Area | 1895.04(H)×1065.96(V) mm |
| Bezel Area | 1897.0(H)×1068.0(V) mm |
| Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| Luminance | 410 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M/1.07B 72% NTSC |
| Light Source | WLED , 50K hours , With LED Driverr |
| Weight | 38.0/39.9Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
10 Tests Before Leaving The Factory
Screen Test---DC Voltage Test---High Voltage Test---Touch Test---High Temperature Test---Constant Temperature Test---Vibration Test---Drop Test(option)---Static Test---Aging Test

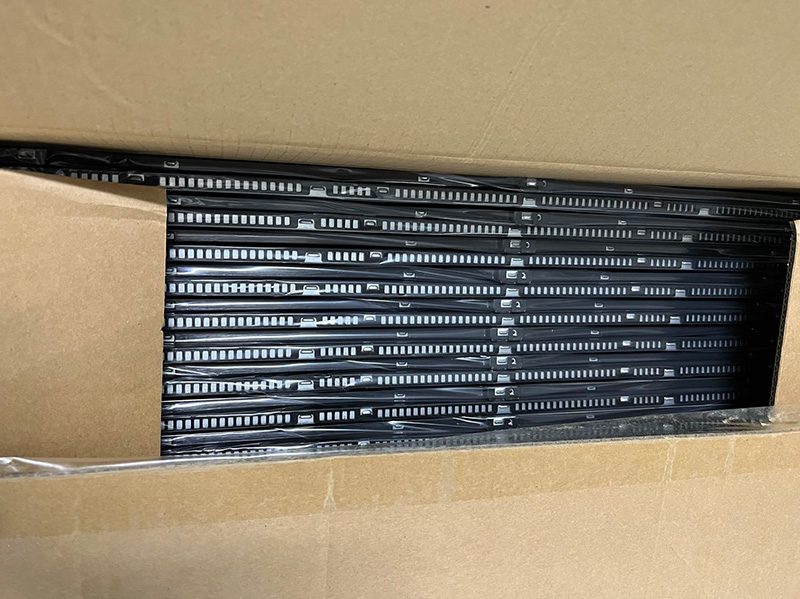

All-in-one Package
A. Packaged with vacuum bag;
B. Pearl carton dust bag packaging;
C. 15mm thickness pearl cotton protection;
D. 5 layers corrugated carton;
E. Honeycomb cardboard box for device up to 27inch;
F. Automatic machine sealing packing belt protection;
G. Packing method can be negotiated: Fumigation-free wooden case packaging or Flight case packaging.
Our Services
Pre-Saleservices
A: Provide total solutions according to customer request free of charge.B: Provide local technical support if necessarily.
In-Salesservices
A: Delivery on time.B: Provide structure and installation drawing according to customer request.
C: High efficiency transportation service.
After-Salesservices
A: One year free maintenance, life time maintenance.B: 7*24 hours response time.
C: Provide necessary accessories with products.
D: Free technical training.
E: Regular telephone satisfaction return test.
F: Software upgrade free of charge.
Frequently Asked Questions
To save you from worries, here are some facts you need to know about our displays & kiosks supplies:
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: Do you have any certification?
Our factory have CE, CCC, UL, ROHS, FCC and ISO9001 certificate. If you have other certificate requirements, we also fully support you.
Q4: What's the shipment terms and delivery time of your company?
Well, they depends on the quantity of your order. As you know ,we need time to manufacture the machines. But mostly, the shipment time is 3-8 working days after delivery. For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.
Q5: What brand of screen are you using?
Samsung, LG, BOE and AUO screen are normally used for the digital signage and video walls, while customized screen is also supported.
Q6: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company CY Digital Signage perfectly support customized logo service. But we also hope you know that it's an extraservice, so a little bit extra service fee is needed.
Q7. What is your terms of packing?
Generally, we pack our goods inneutral with Inner 4CM PE foam & export carton box, also outer export Fumigation-free wooden case packaging and light case are optional. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q8: What is the minimum order?
1 unit is our minimum order.
Q9: What kind of inspection can you provide?
CY Digital Signage goes through multiple tests from raw material purchase to finished product by multiple departments such as QA, QC, and sales representatives to ensure that all sign players are in the best condition before shipping. We also accept inspection from a third party appointed by you.
Q10: When can I get a quote?
We usually quote within 12 hours after we receive your inquiry. If you are very urgent, please contact us via email, Skype or WhatsApp (+86 1592 0054 142).
