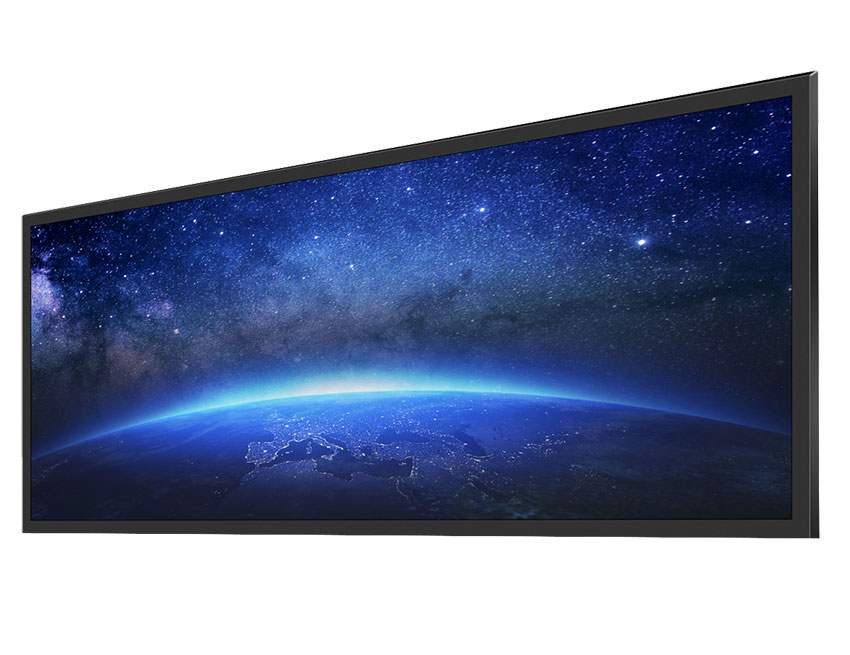

Market Portrait 4K Monitor Stretched Bar LED Advertising Retail Display Shelves
Stretched LCD, 1000nits LED Backlight, 3840x720. Ultra-wide Screen. Sunlight Readable, high brightness. Wide view angle of 178° (H), 178° (V). BL MTBF: 100,000 hours. Shop Commercial Digital Signage Solutions For Your Business!
Meet Retail Display Shelves Manufacturer
CY Digital Signage is a retail display shelves manufacturer over 12 years, committed to China’s high-end displays manufacturing, focusing on OEM ODM capabilities, professional to create your brand.
SIZE OPTIONAL

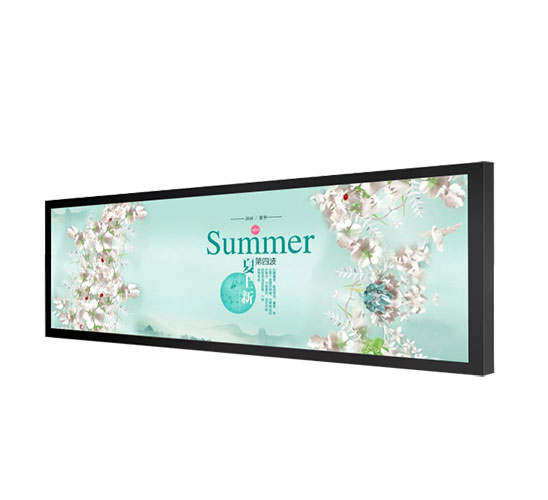

Our line of super stretched bar LCD displays provide super wide aspect ratios as wide as 16:1 and in sizes ranging from 6 inches to 120 inches.
SLIM DESIGN
Digital Edge Displays Slim design can complement any interior as it is light and visually appealing.

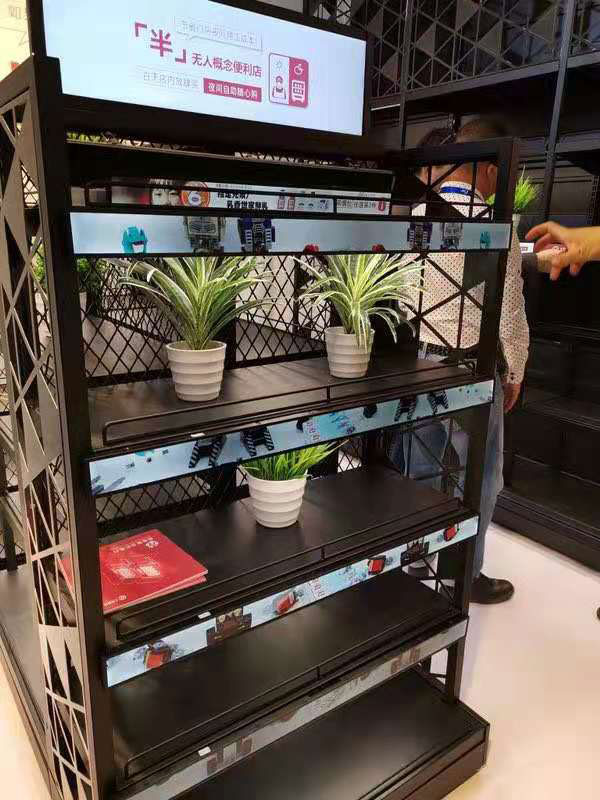

SUPERMARKET SHELF DISPLAY EXCLUSIVE

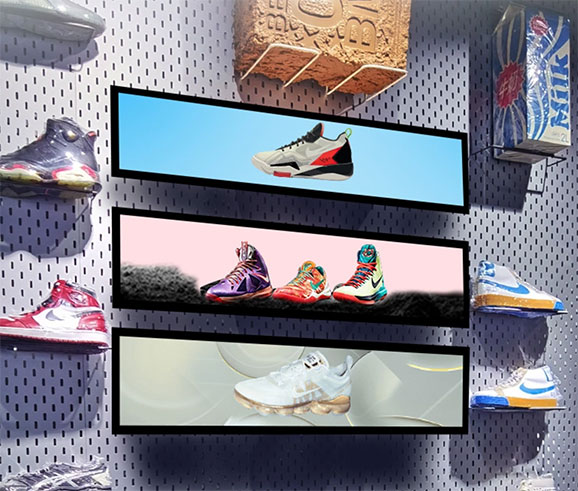

Customized bracket designed for shelf environment makes it fit neatly onto the front of a shelf.
ADAPT TO DIFFERENT INSTALLTION NEEDS

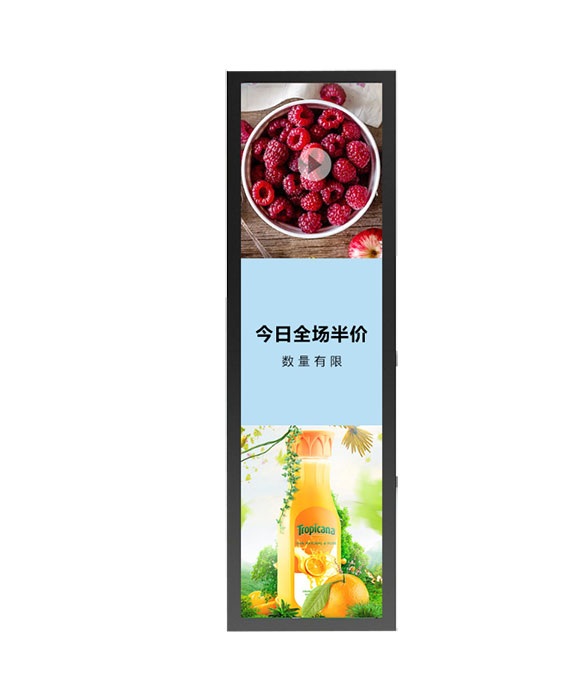

Horizontal and vertical (Landscape and portrait) screen switching, full range to meet the needs of different installation environments.
AUTO COPY PLAYING
Our Stretched LCD shelf display can be auto-copy playing via USB without WIFI.
SMART REMORE CONTROL
CY Digital Signage HD ultra-wide stretched displays sync play or interactive play between different displays.
SUPERB VISUAL EXPERIENCE
High contrast, high brightness, greatly improving the layering of the picture, and better performance of details; Wide color range.
SLIM BEZEL
Our shelf edge LCD display with slim and narrow bezel, advertisements are displayed without blocking the sight of consumers, thus creating a perfect shopping experience.
ENERGY-EFFICIENT
Our stretched bar LCD panel screens use a low-power M+ panel, which has a very high energy efficiency. Compared to conventional panels, this low power consumption M+ panel reduces power consumption by about 30%.
* Customized sizes: 6inch to 120inch.
* Customized frame colors: black, white, orange, gold, blue, pink and etc.

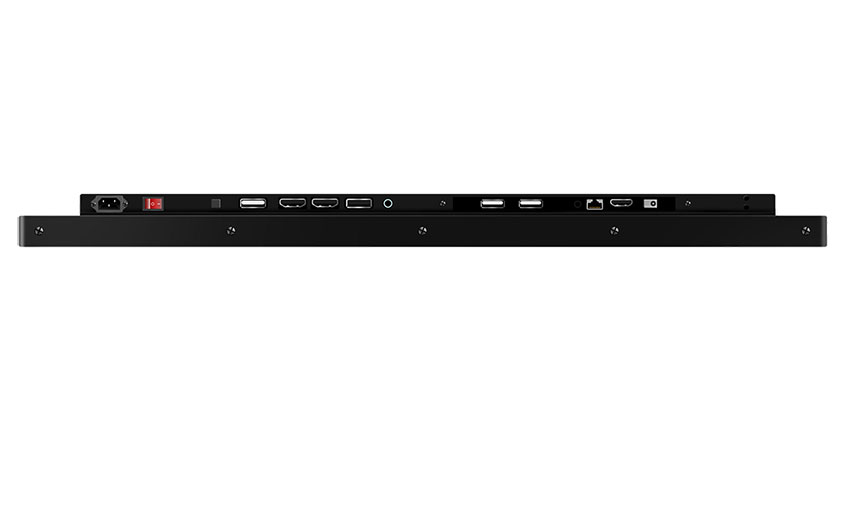

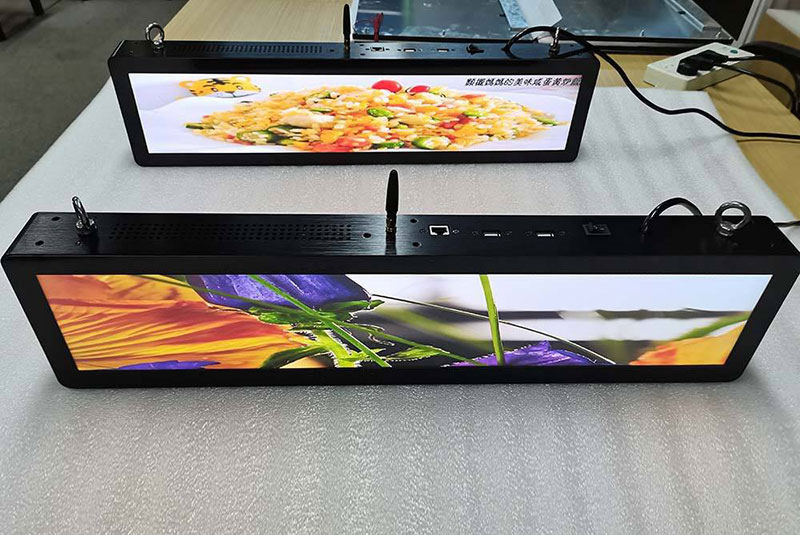

* Customized interfaces: WIFI, LAN, USB, HDMI input, HDMI output, VGA, DP, AV and etc.
* Customized angle: right angle, round border and etc.
Play multiple formats via internet, WIFI internet online transmission, U disk or SD card offline playback.
Insert a USB flash drive or SD card to read file playback.
Support time sharing playing advertisement, timing switch screens, the advertisement playing time and switch time can be customized.

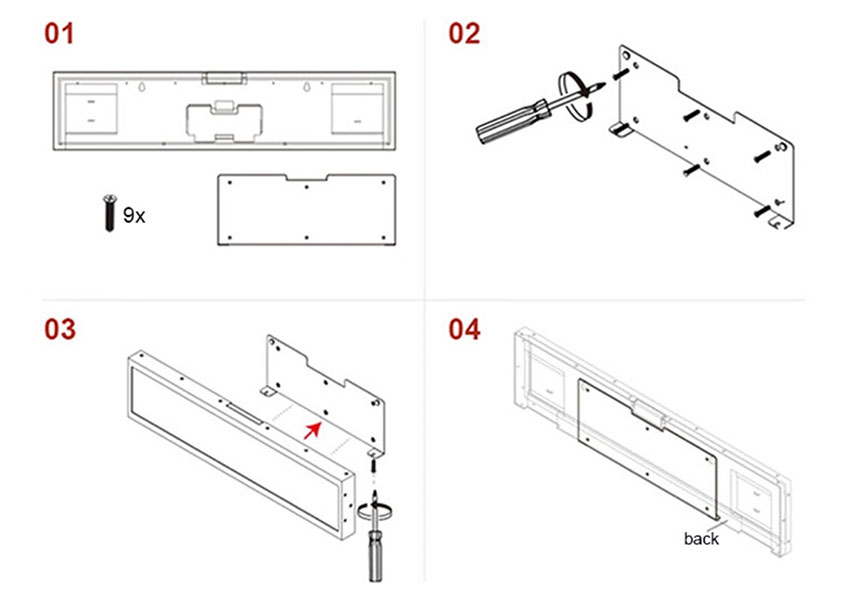

1. Remove the stretched bar LCD display, wall mount, screws and other accessories.
2. Talk about the wall mount in the corresponding position.
3. Mount the Stretched bar LCD display on the wall mount and fix it with screws.
4. The installation is complete, you can enjoy it.
| Product List | Screen Size | Resolution | Dimensions | Active Area | System | Brightness |
| (mm) | (mm) | (nits) | ||||
| 8.8 inch | 1920*480 | 258*70*24.1 | 218.9*54.8 | Android 5.0 | 500 | |
| 18.8 inch | 1920*185 | 498*71.5*23.8 | 476.64*49.15 | Android 5.0 | 500 | |
| 19 inch | 1920*360 | 494.4*112.4*33.3 | 476.64*89.37 | Android 5.0 | 300 | |
| 19.8 inch | 1920*590 | 498*171.5*17.8 | 476.64*148.2 | Android 5.0 | 500 | |
| 21 inch | 1920*132 | 542.4*54.7*8.9 | 529.416*36.397 | Android 5.0 | 300 | |
| 21.6 inch | 1920*590 | 546.5*183.5*17.6 | 528.28*160.19 | Android 5.0 | 500 | |
| 22 inch | 1920*158 | 597.4*60.4*15.8 | 585.6*48.19 | Android 5.0 | 400 | |
| 23.5 inch | 1920*360 | 599.65*124.63*15.1 | 584.64*109.62 | Android 5.0 | 500 | |
| 24 inch | 1920*360 | 615.6*135.1*33.2 | 597.888*112.104 | Android 5.0 | 300 | |
| 28 inch | 1920*360 | 743.9*163.9*30.2 | 699.84*131.22 | Android 5.0 | 700 | |
| 29 inch | 1920*540 | 755*253*41 | 685.4*196.63 | Android 5.0 | 500 | |
| 35 inch | 2880*158 | 891.6*60.4*15.8 | 878.4*48.19 | Android 5.0 | 400 | |
| 34.6 inch | 1920*156 | 899.5*93.5*19 | 878.11*74.15 | Android 5.0 | 500 | |
| 35.6 inch | 1920*533 | 899.5*262.5*17.8 | 878.112*242.67 | Android 5.0 | 500 | |
| 36.6 inch | 1920*290 | 960*174.35*35 | 919.3*138.85 | Android 5.0 | 700 | |
| 37 inch | 1920*540 | 914.91*280.84*43.5 | 899.712*253.044 | Android 5.0 | 700 | |
| 43.8 inch | 3480*1080 | 1087*328*47 | 1071*301 | Android 5.0 | 700-2000 | |
| 47.1 inch | 3840*160 | 1209*62.9*16 | 1196.16*49.84 | Android 5.0 | 500 |
| System | CPU | RK3288 |
| RAM | 2GB | |
| Disk | 8GB | |
| operating System | Android 5.1 and above | |
| Display | Viewing Angle | 89/89/89/89 (up / down / left / right) |
| Display Mode | Normally black, ads, transmissive, matte | |
| Contrast | 1000:01:00 | |
| brightness | 300-700 nits | |
| Network | WIFI | 2.4G WIFI |
| Ethernet | 100m Ethernet | |
| Bluetooth | Optional | |
| Interface | USB | 1 |
| USB×1 | USB OTG | |
| RJ45 | 1 | |
| Deck | 1 push-push TF deck | |
| Media Supported | Video Format | Support rich video format: AVI, MOV, MKV, WEBM, MP4, M4V, FLV, 3GP |
| Audio Format | Support all format audio files: OGG, APE, FLAC, WAV, AMR, AIFF, MPC | |
| Image Format | Support picture format: JPG, JPEG, BMP, GIF, PNG, maximum resolution to 30000*30000 | |
| Others | VESA | Support wall mount 100 * 600mm, 100 * 100mm |
| Language | Multi language and English | |
| Operating Temperature | 0--50 degrees | |
| Power | 65W | |
| Power | AC Power | AC 220V |
| DC Power | DC 12V |
The most popular application for bar-style LCD is in public transportation displays, including route displays onboard trains, streetcars, and busses, advertising displays in airports, bus stations, and train stations, and in several cases they are mounted on top of taxi cabs as mobile ad space.

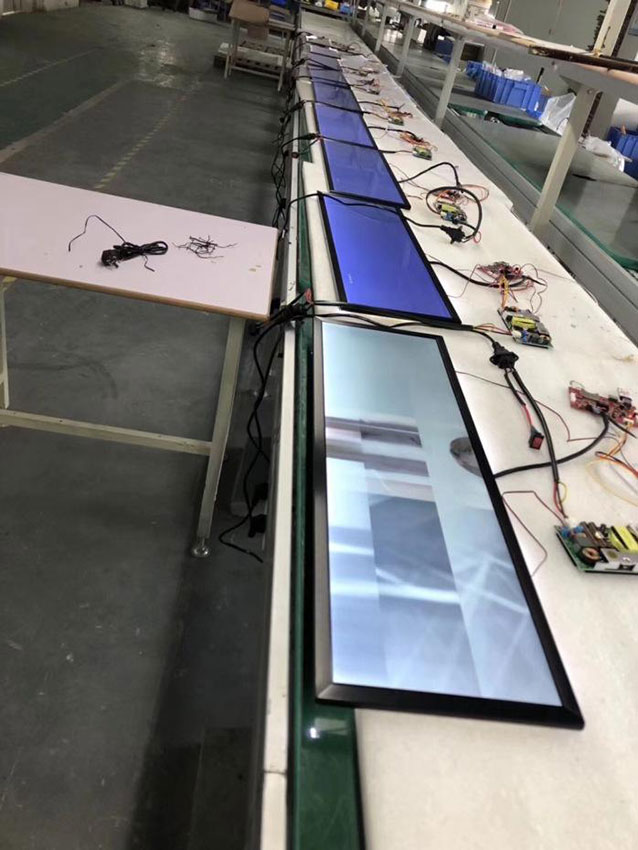

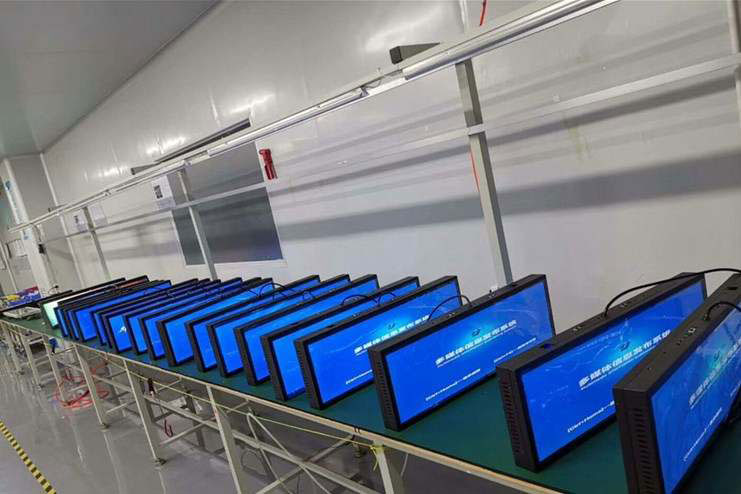

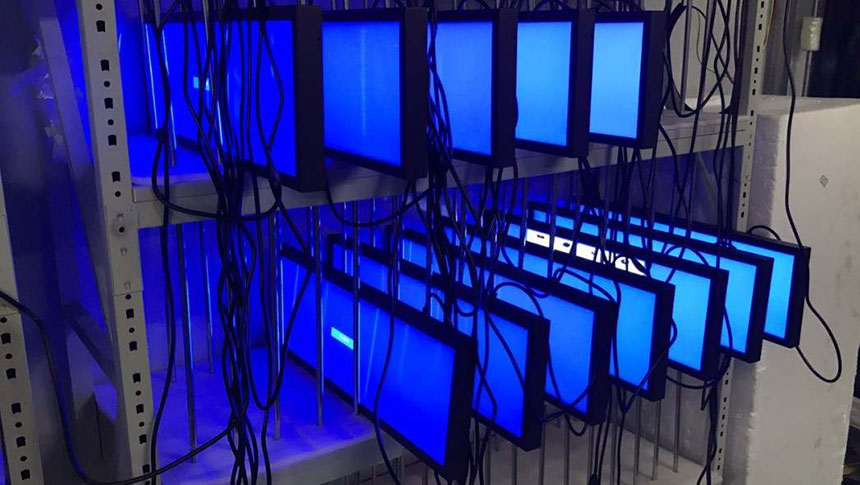

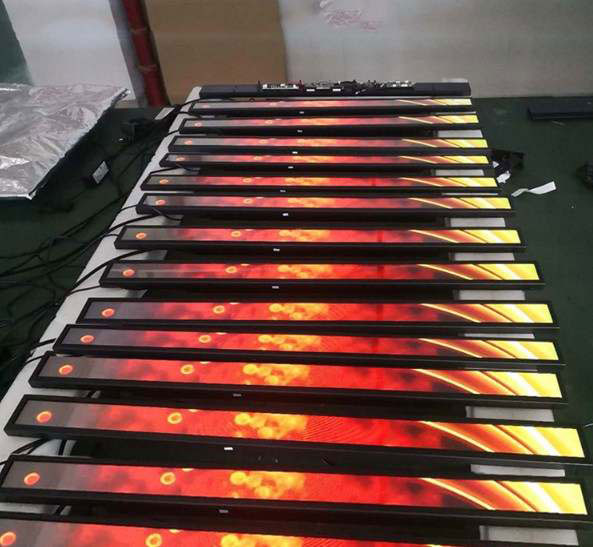

10 Tests Before Leaving The Factory
Screen Test---DC Voltage Test---High Voltage Test---Touch Test---High Temperature Test---Constant Temperature Test---Vibration Test---Drop Test(option)---Static Test---Aging Test
A. Packaged with vacuum bag;
B. Pearl carton dust bag packaging;
C. 15mm thickness pearl cotton protection;
D. 5 layers corrugated carton;
E. Honeycomb cardboard box for device up to 27inch;
F. Automatic machine sealing packing belt protection;
G. Packing method can be negotiated: Fumigation-free wooden case packaging or Flight case packaging.
Pre-Saleservices
A: Provide total solutions according to customer request free of charge.B: Provide local technical support if necessarily.
In-Salesservices
A: Delivery on time.B: Provide structure and installation drawing according to customer request.
C: High efficiency transportation service.
After-Salesservices
A: One year free maintenance, life time maintenance.B: 7*24 hours response time.
C: Provide necessary accessories with products.
D: Free technical training.
E: Regular telephone satisfaction return test.
F: Software upgrade free of charge.
" This is my second one of these, same before the quality of the screen is excellent and in this case so is the metal case it come in. Tough, high quality. ----- Jacobe Freyed US
Me parece muy buen producto. ----- Felipe Eenou Spain
For what it is, this is a good bar lcd display. The picture is crisp and It in a nice wooden case. Fast delivery time and good service. ----- Cody McKee Brazil
This little monitor was one of the better purchases I made. If future projects arise, I would have no problem using CY Digital Signage stretched bar Lcd monitor again. ----- Dragon Z London "
To save you from worries, here are some facts you need to know about our displays & kiosks supplies:
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: Do you have any certification?
Our factory have CE, CCC, UL, ROHS, FCC and ISO9001 certificate. If you have other certificate requirements, we also fully support you.
Q4: What's the shipment terms and delivery time of your company?
Well, they depends on the quantity of your order. As you know ,we need time to manufacture the machines. But mostly, the shipment time is 3-8 working days after delivery. For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.
Q5: What brand of screen are you using?
Samsung, LG, BOE and AUO screen are normally used for the digital signage and video walls, while customized screen is also supported.
Q6: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company CY Digital Signage perfectly support customized logo service. But we also hope you know that it's an extraservice, so a little bit extra service fee is needed.
Q7. What is your terms of packing?
Generally, we pack our goods inneutral with Inner 4CM PE foam & export carton box, also outer export Fumigation-free wooden case packaging and light case are optional. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q8: What is the minimum order?
1 unit is our minimum order.
Q9: What kind of inspection can you provide?
CY Digital Signage goes through multiple tests from raw material purchase to finished product by multiple departments such as QA, QC, and sales representatives to ensure that all sign players are in the best condition before shipping. We also accept inspection from a third party appointed by you.
Q10: When can I get a quote?
We usually quote within 12 hours after we receive your inquiry. If you are very urgent, please contact us via email, Skype or WhatsApp (+86 1592 0054 142).
-
