Written By Eva Wen On 19th November 2022
With the development of Outdoor Advertising Digital Kiosk, continuous development and innovation are required. A lot of human and material resources and financial resources need to be invested to carry out product structure and temperature control and other innovations. The development of Waterproof Outdoor Totem to change, not just adhere to the traditional thinking. To take IP55 IP65 Outdoor Advertising Kiosk to consider the actual application scenario. Let Smart AD Outdoor Kiosk can be better accepted by the public. And these need to do the following three things.
First, the innovation of LCD Outdoor Totem is mainly combined with the demand to carry out, according to the application of the actual scene to integrate the design. To use more technology, rather than simply rely on the traditional values of the past to support the development.
Second, the development of external display channels. Now, cross-industry development is now a major mainstream in the development. And the development and display of Outdoor LED Media should be multi-channel to build. Such as cross-channel to achieve resource sharing, intelligent Internet terminal data, etc. to achieve cross-industry communication. At the same time combined with the needs of enterprises, for the needs of enterprises to do a good job of publicity management.
Third, increase the interactivity of the product, which requires communication between manufacturers and Outdoor Media and businesses, to solve the stickiness between customers and products, through more on the display content on the design, screen mutual touch, etc., to achieve the link between advertising and customers. Through the contact between consumers and the media to form a community, to achieve multiple dissemination of outdoor media.

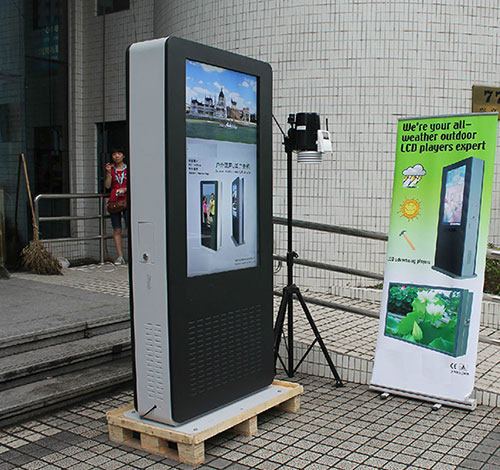

Our media display support:
◆ All-weather outdoor operation
◆ Outdoors high brightness HD LCD display
◆ Intelligent sunlight sensitivity, horizontal / vertical 178 degrees visible
◆ Intelligent and unique air duct and motherboard design can automatically adjust the wind speed cooling
◆ Built in abnormal protection design can automatically power off to protect the LCD screen remote monitoring
◆ Can be added: support remote monitoring, touch interactive, WIFI/3G/4G
◆ Outdoor protection grade IP55 or IP65
◆ All outdoor: waterproof, dust-proof, sun-proof, anti-corrosion, explosion-proof and anti-theft
◆ Floor mounting, high brightness LCD module design, exquisite appearance, easy maintenance
◆ Galvanized steel plate + zinc coated powder priming + surface spraying special outdoor powder
1. Structure

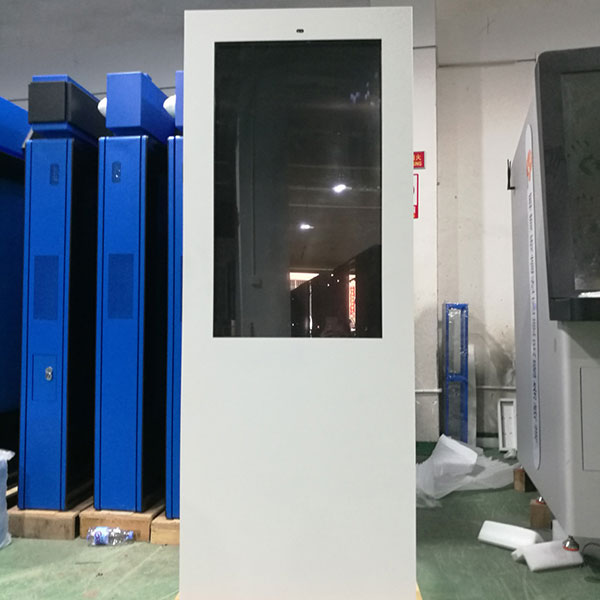

1.1 Shell design: the shell is made of 1.2 or 1.5mm galvanized sheet, sprayed with Aksu outdoor special powder, outdoor anti-corrosion for more than 7 years.

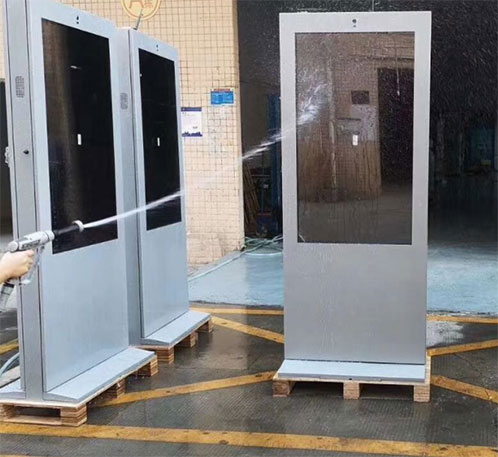

1.2 Waterproof design: The shell structure is designed with waterproof slot and waterproof labyrinth for inlet and outlet air holes to meet IP55 IP65 protection level.
1.3 Anti-dust design: the air inlet and outlet are designed with special dust filter (medium and high efficiency dust filter) to filter the micro dust in the air and prevent mosquitoes and other insects from entering the inside of the machine.
1.4 High-transmission glass: The whole machine screen front protection glass adopts 6mm high-transmission tempered glass or AR anti-glare tempered glass, light transmission rate ≥ 97%, high light transmission.
1.5 Maintenance: the whole machine adopts the front/rear double door way, which can be convenient to maintain the internal display, glass, heat dissipation components and electronic parts; the whole machine adopts modular design, which is convenient to install and maintain.
1.6 Anti-theft design: The base adopts internal locking design to prevent the machine and equipment from being moved by disassembling screws from outside, which is truly safe and anti-theft.
1.7 Installation and fixing: the base is designed to be fixed with expansion screws on the concrete floor, which can be customized according to customer requirements, with all the accessories available, and the machine can be installed by directly punching holes.
2 . Display
2.1 The use of outdoor special high-brightness LCD screen, brightness of 1000-2500nit, visible in strong light, design life of 50,000 hours.
2.2 High definition picture quality, screen resolution: 1920*1080 or 3840*2160.
2.3 High dynamic contrast ratio, clearer picture, viewing angle 178°.
2.4 Intelligent light-sensitive system, can automatically adjust the screen brightness according to the environment, users can watch the program clearly/comfortably at different times, to protect the eyes.
2.5 Intelligent color calibration, automatically calibrate the contrast color or manual fine-tuning, presenting the perfect picture .
3 . Intelligent temperature control system
3.1 Adopt intelligent direct ventilation (forced air cooling) cooling system, professional special cooling design .
3.2 Self-developed intelligent temperature control system control box, according to the internal temperature of the advertising machine, intelligent adjustment of the whole machine internal air and external air for time circulation, all external wind first into the filter, and then the wind into the screen before / after the double air circulation.
3.3 Equipped with high temperature automatic power off protection function, when the product due to external factors or internal reasons lead to abnormal internal temperature of the machine, and beyond the reasonable working range, the control system will power off the display and other major accessories for protection, while the fan continues to run at full speed to dissipate heat, fully protect the display and major spare parts.
4 . Electronic structure
4.1 Product selection of well-known manufacturers of intelligent industrial control motherboard, stand-alone / Android / industrial control computer motherboard can be selected, the default Android dual-core. Support remote and local program management (optional).
4.2 The use of internationally renowned brands of industrial-grade switching power supply, applicable to different countries around the world voltage, safety, stability, long life, high energy efficiency value.
4.3 Built-in leakage protector, lightning protection and other configurations, all-round safety protection .
4.4 Configure accurate timer, Chinese and English two choices, can repeat multiple settings, according to the day, week, month timing switch.
4.5 Over-temperature protection: when there is, for example, because the inlet and outlet is blocked and other special circumstances not found in time and maintenance resulting in high internal temperature, the system will turn off the LCD power, air-cooled system continues to operate normally to cool down, to protect the LCD, motherboard and other major components.
