With the increasing richness of people's lives, as well as the needs of a variety of landscape creativity, common display equipment LED videowall has not been able to meet the needs of the development of intelligent emerging technologies, the development of flexible modules has become an unstoppable trend in the market. So how to achieve the splicing of flexible OLED videowall?

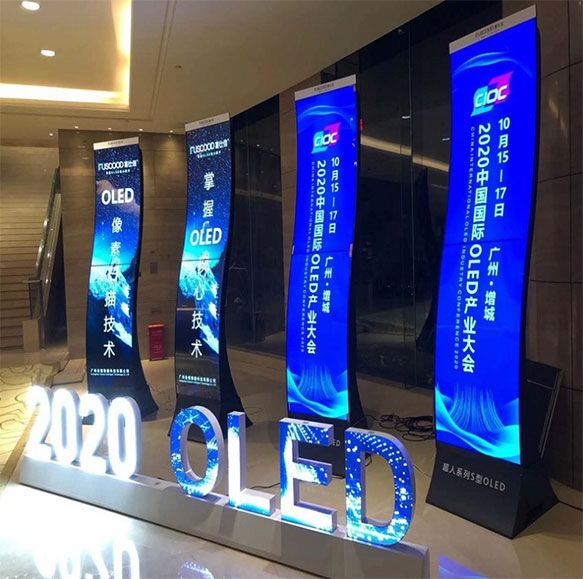

Flexible screen called OLED, is a new ultra-thin flexible led display system, including led display units and signal processing units linked to it through the circuit board, power supply units, circuit boards are flexible, flexible display, the use of PHOLED phosphorescent OLED technology, with low power consumption, direct visual flexible panels, made of soft materials, variable bendable display device . It has beautiful convex lines and a variety of changes in the unique shape of the color change to give people a dynamic sense of beauty.
We only know that the videowall is an industrial-grade LCD display, and TV and other display products are different is that it has a splicing function, that is, it can be spliced together to achieve a large screen display, which is also to meet some of the large display screen has a demand for the market, the reason for the use of splicing, because the production and transportation of LCD screens do not allow its size to do too large. For example, although the LCD panel production line has been developed to 10.5 generation line, a glass substrate size also reached more than two meters, but still not convenient for transport, the current more mature is about 65 inches. But in some large meetings and command and control center and other occasions, the user's signal source more, enlarge the display can allow more people to watch at the same time, and the display effect is more intuitive, then you need to find ways to make the LCD screen splicing up to use.
Flexible OLED videowall can be spliced mainly thanks to its controller, there is a splicing processor behind the panel of the flexible OLED videowall, so that the flexible OLED videowall between the splicing display is mainly its control, it is like a computer host, there is a power supply interface and signal interface, signal interface and videowall panel power board connected, this time to achieve a basic splicing function.
But the flexible OLED videowall as a whole, it is still just a monitor, we want to achieve the full-screen display or cross-screen splicing with the central control processing equipment to achieve. For example, we have nine flexible OLED videowall, we want to achieve a computer screen enlargement to full-screen display, then to ensure that the nine videowall splicing premise, between the videowall and computer signal output, but also to add a central control equipment, through it to split the computer signal into nine, to achieve the splicing of the screen. And according to the different signal sources and display effects of different needs, there are more than one central control equipment, commonly used with the distributor, HD matrix, image processor and decoder four.
If we have only one computer input to the videowall, and only need a full-screen display a function, then use a multi-input distributor can be, usually HDMI interface, such as the case of 9 flexible OLED block videowall, with one into the ten out. If it is more than one input computer, you need more than one screen at the same time displayed on the videowall, then you need to use the matrix, which can be achieved on the basis of the distributor multiple computer synchronous switching display, and can arbitrarily control several screens to display a screen, for example, there are four computers 9 videowall, then use a four into ten out of the HDMI high-definition matrix can.
These two central control equipment is the main use of flexible OLED videowall two, in addition in some monitoring display occasions in order to achieve video decoding but also use two other devices, such as decoder is to allow monitoring video screen to achieve the main control device splicing, it is also the function of the matrix, not only can be spliced display, but also can be divided to display and so on. The image processor is based on the matrix, the realization of cross-screen overlay roaming and open window display function, more powerful.
So that the flexible OLED videowall to achieve splicing mainly because it has its own splicing controller, making it has a splicing function, while in the composition of the display screen there is a central control processing equipment to assist in achieving a variety of splicing display effect. We just need to choose a corresponding central control equipment according to their display needs. However, the installation or need professional OLED flexible videowall manufacturers for program planning and construction.
